BUZZRAW X MR

Chassis

Frame: Buzzraw X Gen 3

4130 Chromoly | Upgraded with Gussets

Fork:

4130 Chromoly

Handlebar:

4130 Chromoly

Bottom Bracket:

BSA 100mm

Paint Finish:

Anti-Rust ED Coated Interior |
Scratch Resistant Powder Coating Magma Black

Bike Length:

1710mm

Recommended Rider Height:

1.50m - 1.85m

Load Capacity:

135kg

---

Components

Brakes:

Magura MT30

Brake rotors:

F180 | R180

Rear Derailleur:

Coast Components RS8 Composite 8 Speed

Shifter:

Coast Components RS8 Trigger Shifter

Cassette:

13-36T | 276% Gear Range

Tires:

Coast Cycles A/T1 20" x 4.0" E-Bike Rated
(Hard Compound | Wire Bead)

Rims:

Coast Components Hybrid Double Wall

Front Hub | Rear Hub:

135mm x 10mm Bolt-On Front Hub
190mm x 10mm Bolt-On Rear Hub

Front Shock:

DNM DV-22AR | 190mm x 51mm

Front Spring:

Coast Components 450lb/in 115mm

Rear Shock:

DNM DV-22AR | 190mm x 51mm

Rear Spring:

Coast Components 350lb/in 115mm

Travel:

80mm Front and Rear Travel

Saddle:

Durafoam Splash Resistant Saddle

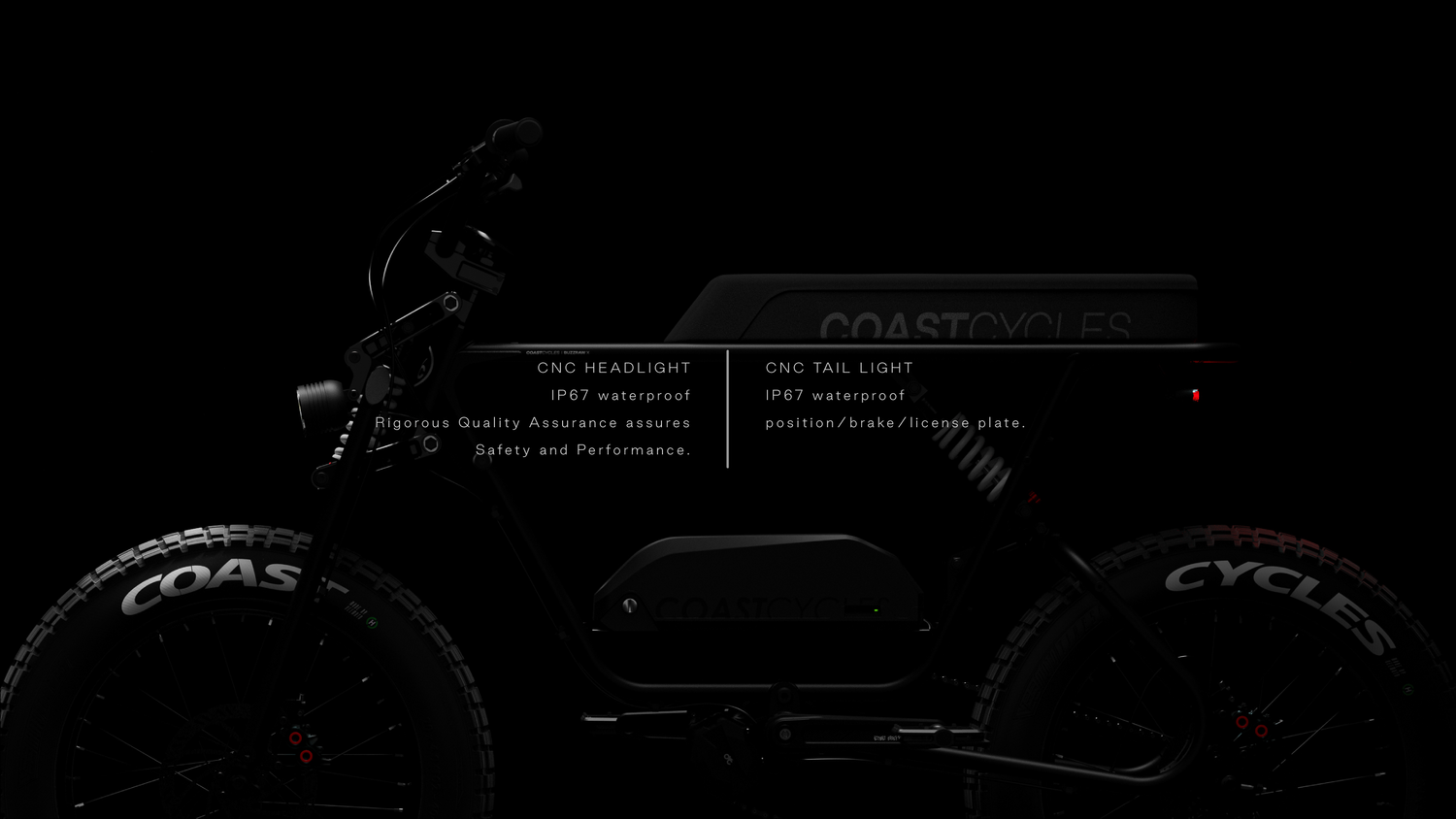

Headlight:

IP67 Waterproof

Tail Light:

IP67 Waterproof

---

Electronics

250MR

Motor:

CYC Photon

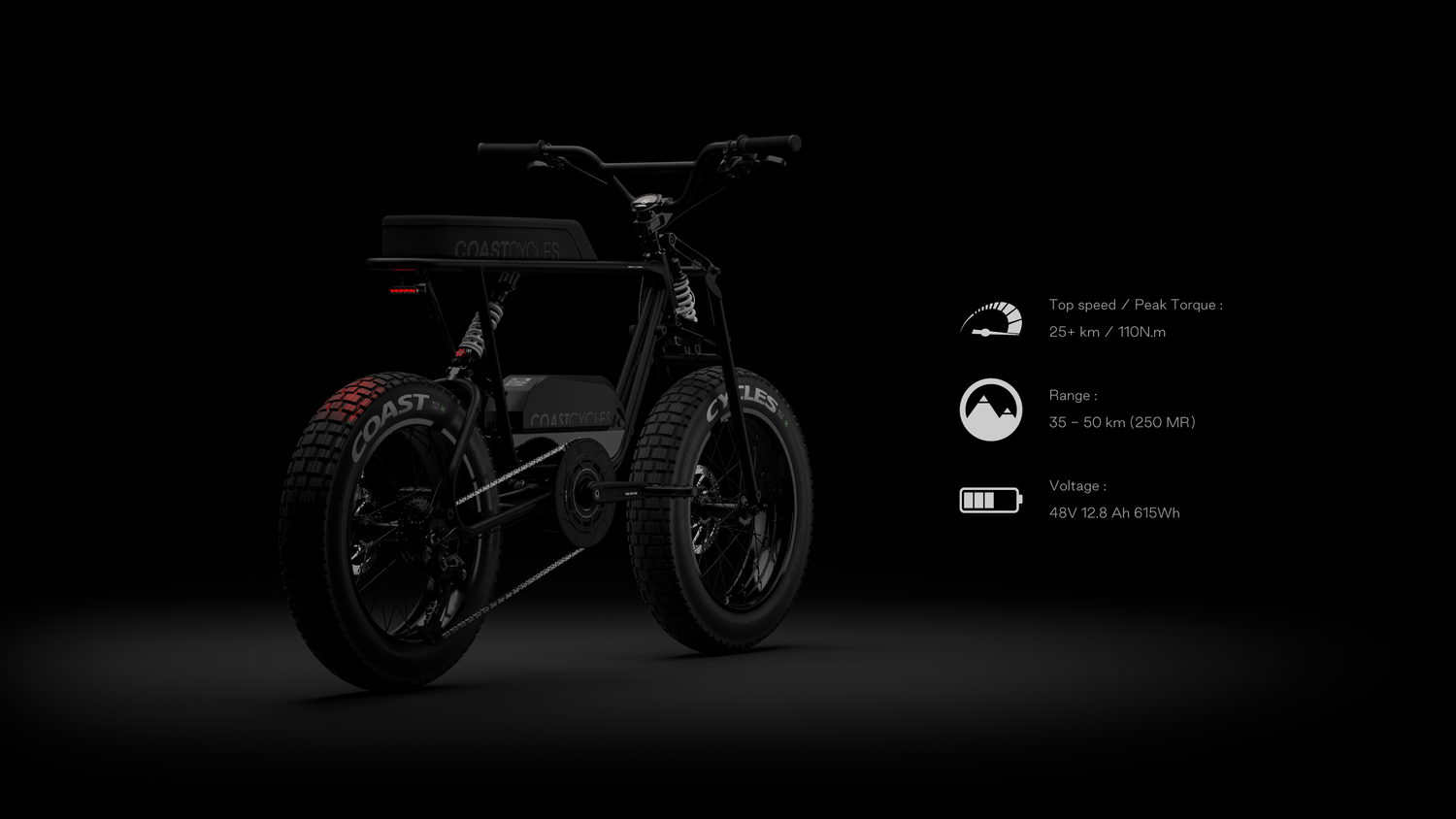

Power:

250W

Battery:

48V 12.8Ah 615Wh

Range:

35km - 50km

Charging Time:

5 Hours

Top Speed:

25km/h

Maximum Torque:

110N.m.

Chainring:

50T

Thumb Throttle:

Not Included

Weight:

32.2kg



750MR

Motor:

CYC Photon

Power:

750W

Battery:

48V 12.8Ah 615Wh

Range:

35km

Charging Time:

5 Hours

Top Speed:

32km/h

Maximum Torque:

110N.m.

Chainring:

50T

Thumb Throttle:

Not Included

Weight:

32.2kg

Display Quick Start Guide:

Intuition Smart Display Quick Start Guide

NOTE:

To prevent unwanted battery usage, please turn off the battery when not in use.

Please refer to Support for more information.
