COBBLECROSS SUSPENSION FORK

USD 663.00

Smoothen Out Your Ride

COLOR: BLACK

Product variants

Quantity

Damping:

3-System Damper

Axle to Crown:

451 mm

Travel:

100 mm

Adjustments:

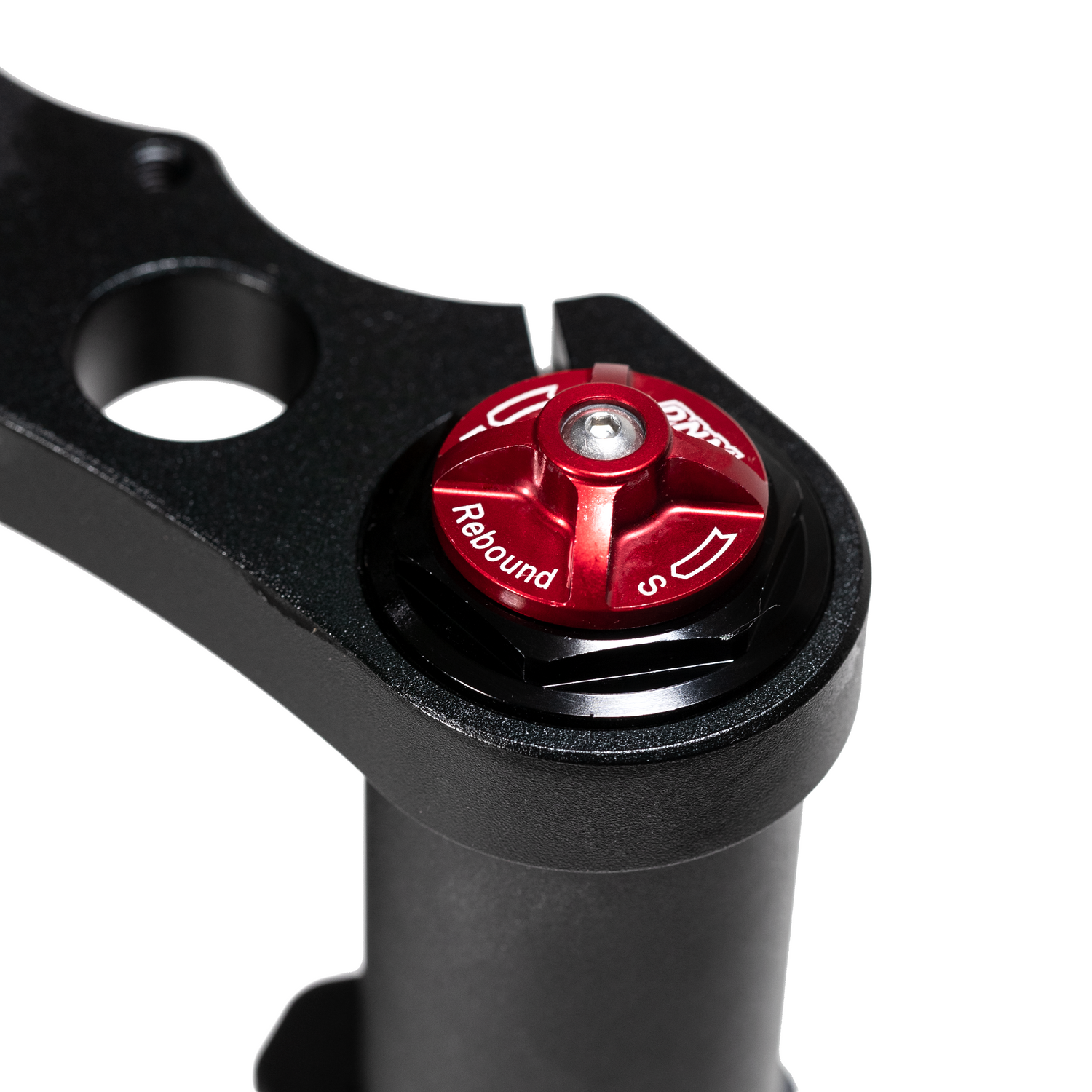

Preload | Rebound | Air Assist (6-8 Bar)

Axle Type:

150 x 15 (mm) Al-7075 Thru-Axle Design

Stanchion:

35 mm Al-7075, Dark Hard Anodized

Steerer Tube:

Straight 1 1/8″ Al-7075

Brake Type:

Disc Brake (IS Mount)

Weight:

3500 g

Compatible Bikes:

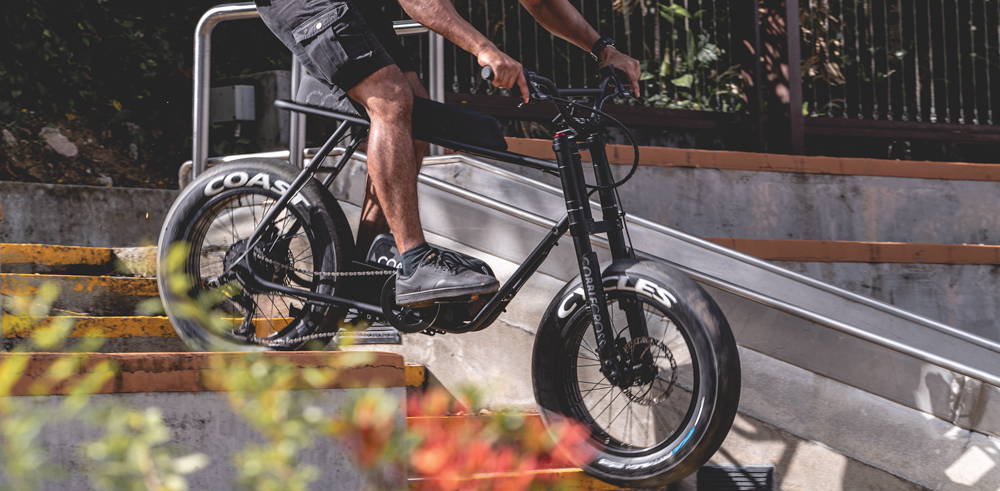

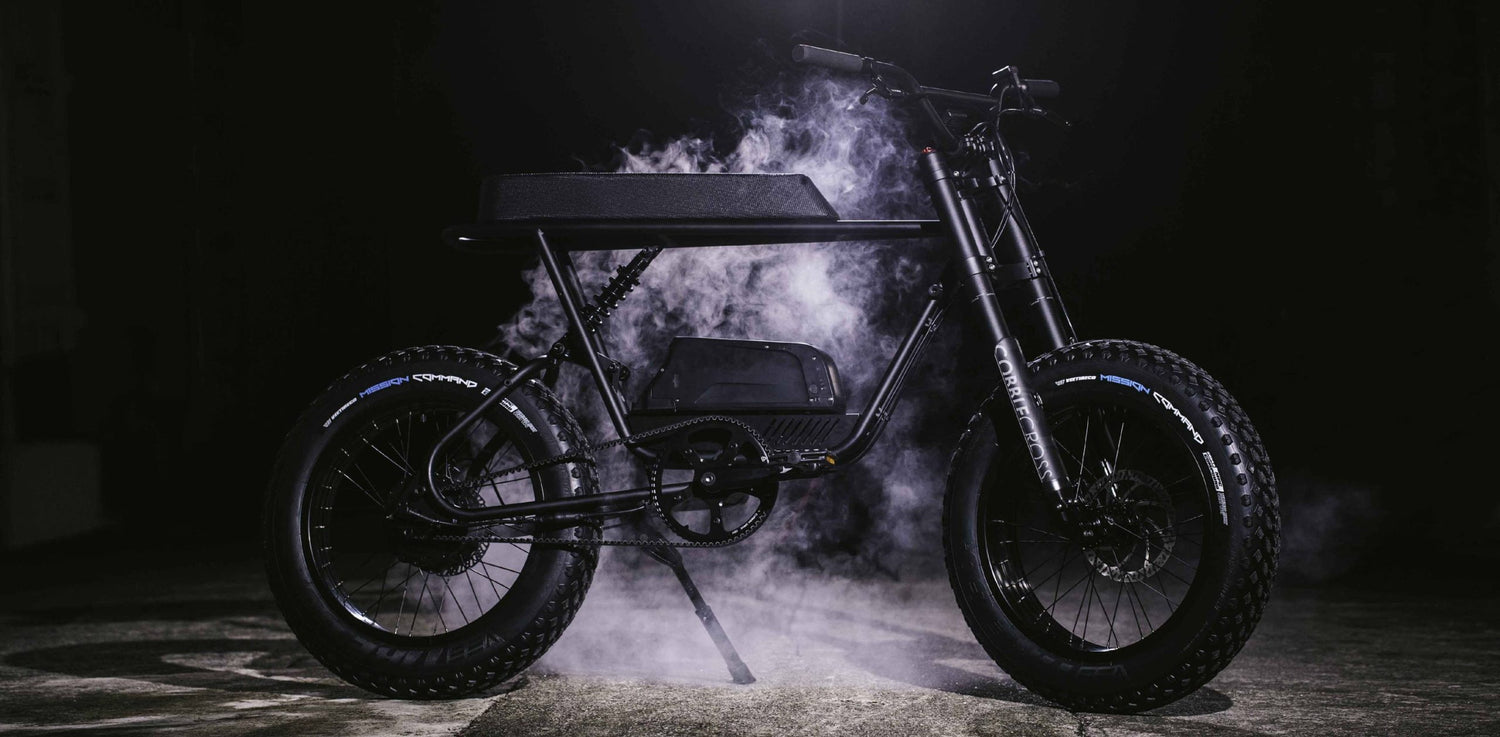

Buzzraw X | Buzzraw Classic

If you will like to adapt this to your own personal project, here’s what you need to know:

Designed for 20x4.0″ wheels

with a 150x15 (mm) thru-axle hub.

Maximum wheel rollout 580 mm.

Maximum Inflated tire width 120 mm.

Headtube length including headset stack

should not exceed 170 mm.
